PORTABLE BORING LATHE
Technical information
1 piece Portable Boring Lathe
1 piece Control Panel
1 piece Tool Holder Shaft
1 piece Cable for Control Panel
1 piece nut wrench
1 piece cutting tool, 1 cutter

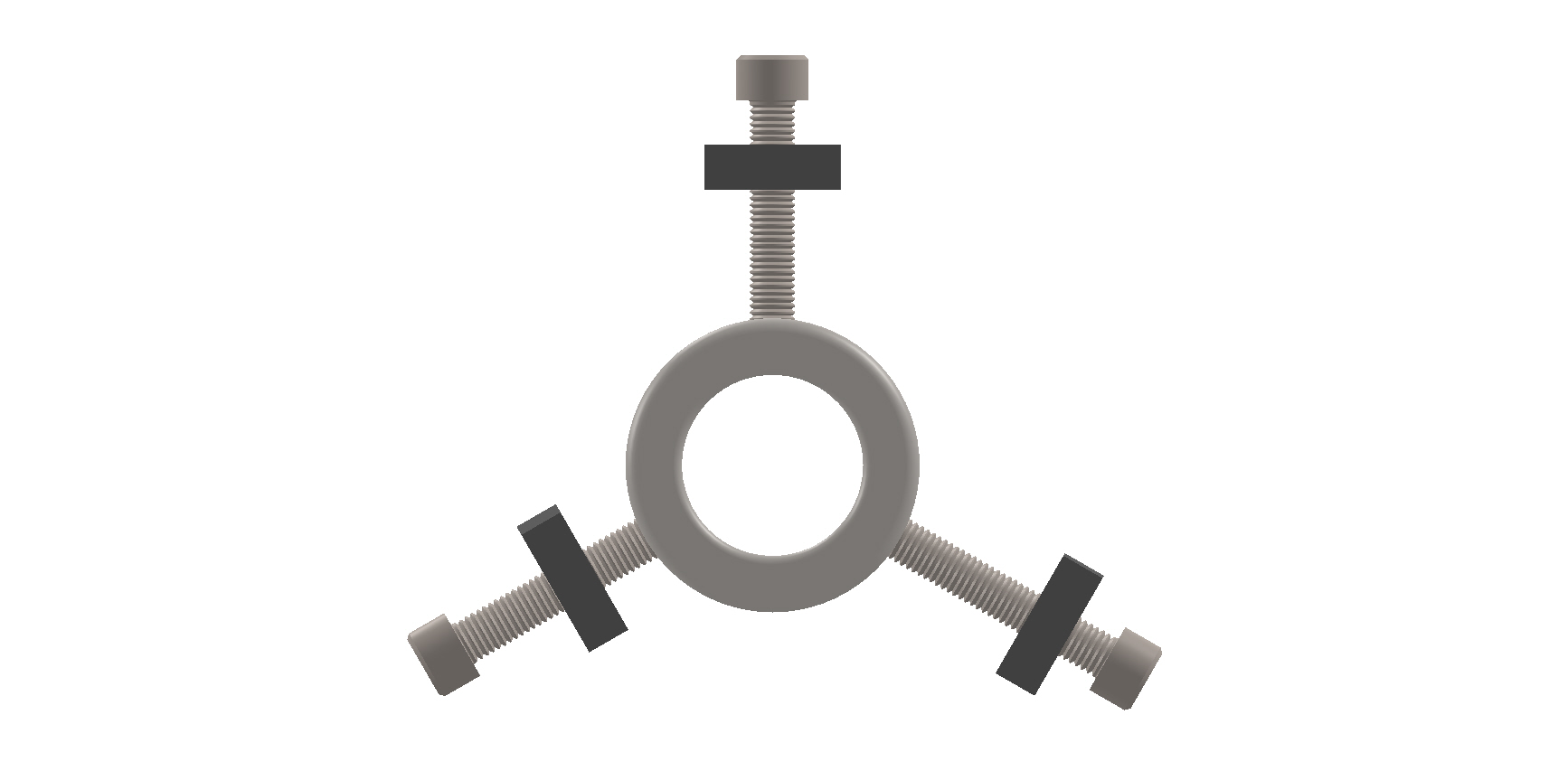

2 piece Centring Kit
1 piece Control Panel Holder
OUTPUT TORQUE AT THE BAR
3600 Nm (200 Rpm)
LONGITUDINAL STROKE
UNLIMITED WITH STEP OF 300mm
BORING DIAMETER
41mm - 800mm
FEED SYSTEM
ELECTRIC-DOUBLE GERARBOX
ROTATION MOTOR
AC (CE COMPLIANT)
FEED MOTOR
AC (CE COMPLIANT)
TOOL HOLDER SHAFT DIAMETER
40 mm

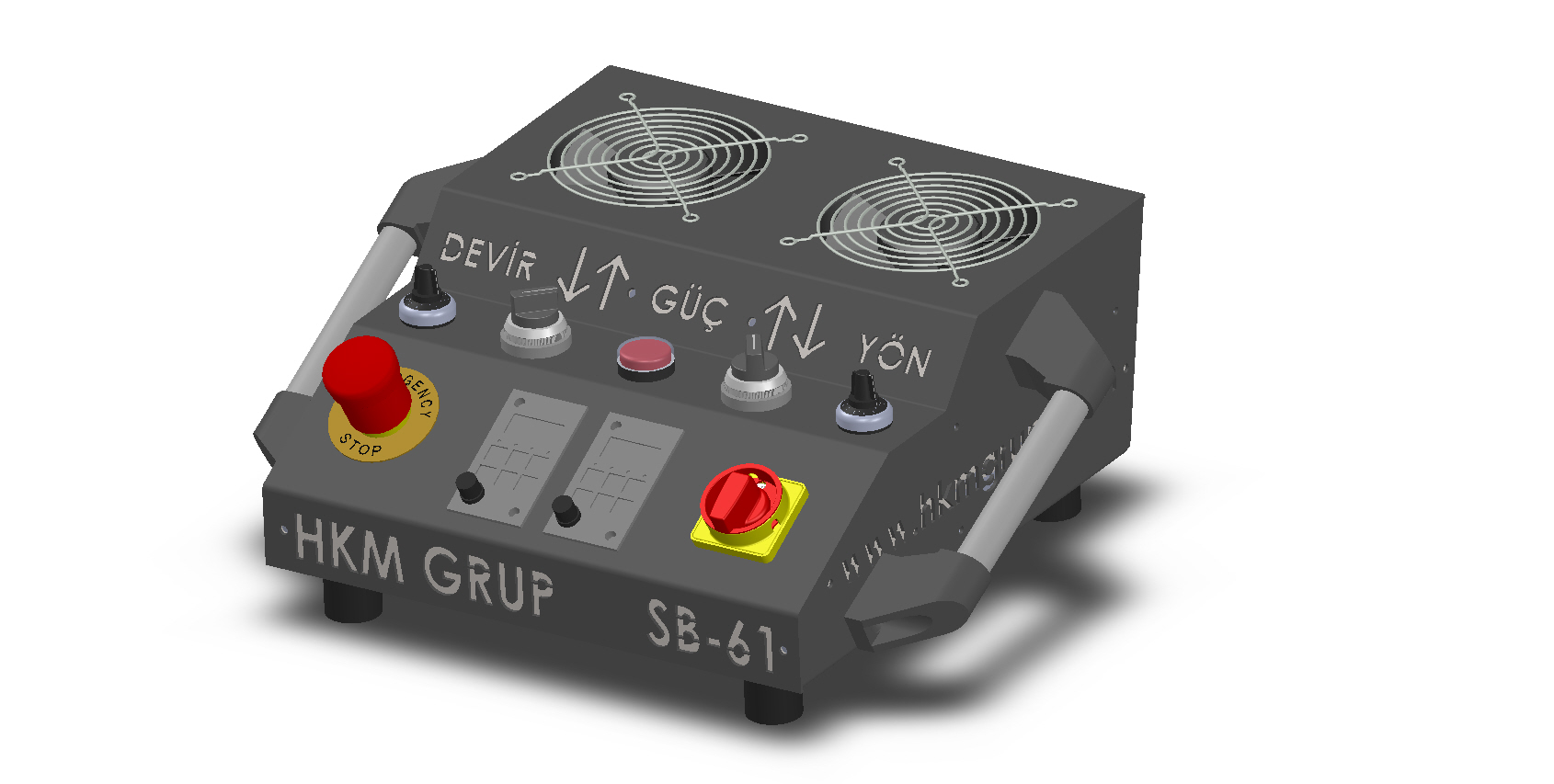

DISPLAY FOR SPEED OF ROTATION REVOLUTIONS
DISPLAY FOR SPEED OF FEEDING REVOLUTIONS
MAIN SWITCH

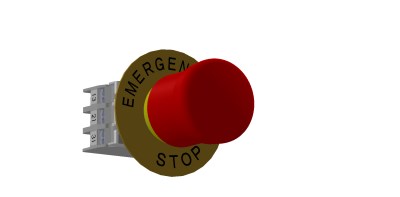

EMERGENCY SWITCH
INVERTER AC FOR FEEDING
INVERTER AC FOR ROTATION
POTENTIOMETER FOR ROTATIONREGULATIO
POTENTIOMETER FOR FEEDING REGULATION
SWITCH FOR RAPID TRANSLATION OF THE SHAFT
2 PIECES OF COOLING FAN
Material Properties
Material
Yield point
N/mm2
Ultimate Tensile strength
N/mm˛
Elongation
%
Machining
Ck 45
320
350 - 520
13
Good
Mechanical Properties
Material
W.No
C %
Mn%
Si%
S %
P %
Ck 45
1.1191
0.42 - 0.50
0.50 - 0.80
0.40
0.0351
0.0351
Chemical Properties
hard chrome-plated induction
length: 2000mm standard
There are 19 units on the hole for the cutting tool
To cutting tool, the hole diameter is 16 mm
single part 6000 mm, 2000 mm shaft
2 pieces Bearing Carriers
2 pieces with nut Bearing Carriers
Material Properties
1.7225 (4140)( 42CrMo4) is made of steel
Manganese Phosphate coating
Bearing beds are used within (6008)
2 piece GearBox
2 piece Inverter
Home
Company Profile
Products
Media
Human Resources
Communication
All rights, HKM GRUP MAK.SAN. VE TIC. LTD. STI. , belongs to the
434mm
250mm
250mm
600mm - 900mm
293mm
Weight : 50 kg
Weight : 10 kg
Weight : 17,5 kg
Weight : 2 * 7 =14 kg
Weight : 2 * 5,5 =11 kg
